SECTION B
Factors From Differential Elements to Finite Areas

B-33: Front face of plane vertical element to circular cylinder tilted toward the element.

Reference: Rein, Sliepcevich and Welker, 1970; Geulzim, Souil, and Vantelon, 1993

Definitions: L=l/r; X=x/r
Governing equation:

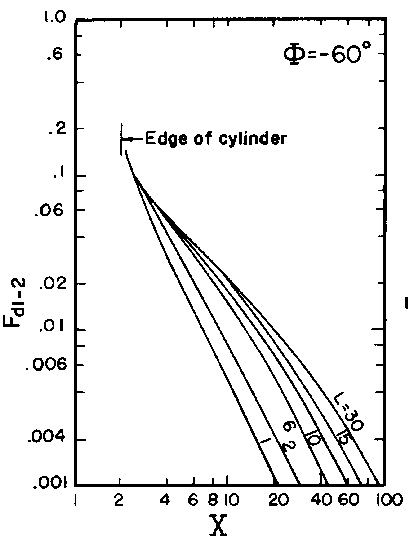

1. F=-60^o

2. F=-45^o

3. F=-30^o

4. F=-15^o

5. F=15^o

6. F=30^o

7. F=45^o

8. F=60^o

1.	F=-60^o
2.	F=-45^o
3.	F=-30^o
4.	F=-15^o
5.	F=15^o
6.	F=30^o
7.	F=45^o
8.	F=60^o
