SECTION C
      Factors From Finite Areas to Finite Areas

      C-76: Outside surface of cylinder to perpendicular right triangle; triangle is in plane of cylinder base with one vertex of triangle at center of base.

      Results for W > 6, V < 0.35



        Reference: Tripp, Hwang, and Crank

        Definitions:

        W = h/r
        U = h/l1
        V = h/l2

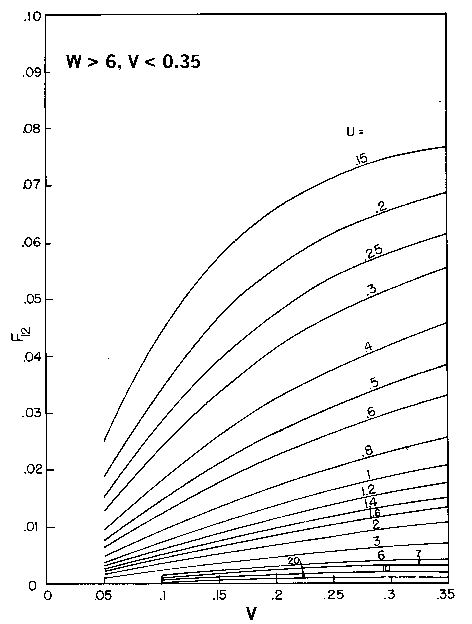

        Graphical Results for W > 6, V < 0.35:
