SECTION C
      Factors From Finite Areas to Finite Areas

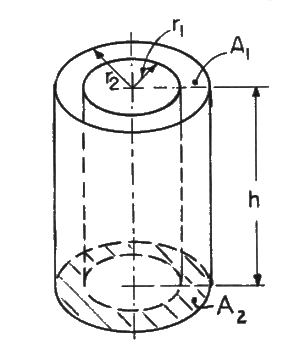

      C-93: Interior of outer right circular cylinder of finite length to annular end enclosing space between coaxial cylinders.



        Reference: Masuda ; Alexandrov; Brockmann

        Definitions:

        H = h/r2; X = (1 - R2)1/2
        R = r1/r2; Y = R(1 - R2 - H2)/(1 - R2 + H2)

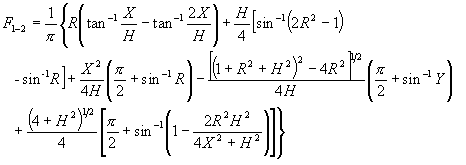

        Governing Equation:



        To download a copy of this equation in MS Word 97 Format, click HERE.
