SECTION C
Factors From Finite Areas to Finite Areas

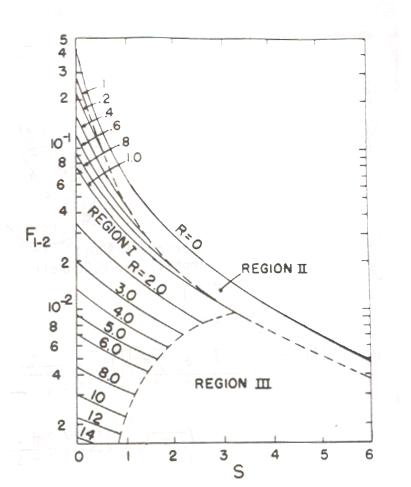

C-137: Two spheres of unequal radius.
Reference: Juul (1976); Felske (1978); Chung and Naraghi; Grier; Campbell and McConnell; Farnbach; Jones
Definitions:
R = r1/r2 S = s/r2
Governing Equation:
To download a copy of this equation in MS Word 97 Format, click HERE.
| R | Configuration Factor F1-2 | |||||||||
| S | ||||||||||
| 0.0 | 0.2 | 0.4 | 0.6 | 0.8 | 1.0 | 1.2 | 1.4 | 2.0 | 3.0 | |
| 0.1 | 3.00E-1 | 1.82E-1 | ||||||||
| 0.2 | 2.33E-1 | 1.53E-1 | 1.12E-1 | 8.49E-2 | ||||||
| 0.4 | 1.61E-1 | 1.14E-1 | 8.63E-2 | 6.81E-2 | 5.54E-2 | 4.59E-2 | ||||
| 0.6 | 1.20E-1 | 8.89E-2 | 6.96E-2 | 5.62E-2 | 4.62E-2 | 3.92E-2 | 3.35E-2 | 2.90E-2 | ||
| 0.8 | 9.42E-2 | 7.19E-2 | 5.75E-2 | 4.73E-2 | 3.97E-2 | 3.37E-2 | 2.86E-2 | 2.55E-2 | 1.79E-2 | |
| 1.0 | 7.62E-2 | 5.95E-2 | 4.85E-2 | 4.05E-2 | 3.44E-2 | 2.94E-2 | 2.58E-2 | 2.27E-2 | 1.61E-2 | 1.02E-2 |
| 2.0 | 3.47E-2 | 2.91E-2 | 2.50E-2 | 2.18E-2 | 1.93E-2 | 1.72E-2 | 1.54E-2 | 1.39E-2 | 1.05E-2 | |
| 3.0 | 2.00E-2 | 1.74E-2 | 1.54E-2 | 1.36E-2 | 1.25E-2 | 1.13E-2 | 1.04E-2 | 9.52E-3 | 7.53E-3 | |
| 4.0 | 1.31E-2 | 1.17E-2 | 1.06E-2 | 9.61E-3 | 8.79E-3 | 8.08E-3 | 7.48E-3 | 6.92E-3 | ||
| 5.0 | 9.40E-3 | 8.43E-3 | 7.70E-3 | 7.08E-3 | 6.55E-3 | 6.09E-3 | 5.68E-3 | 5.31E-3 | ||
| 6.0 | 7.05E-3 | 6.39E-3 | 5.89E-3 | 5.46E-3 | 5.09E-3 | 4.76E-3 | 4.47E-3 | 4.21E-3 | ||
| 8.0 | 4.40E-3 | 4.05E-3 | 3.78E-3 | 3.55E-3 | 3.34E-3 | 3.16E-3 | 2.99E-3 | |||
| 10.0 | 3.00E-3 | 2.81E-3 | 2.64E-3 | 2.50E-3 | 2.37E-3 | 2.26E-3 | ||||
| 12.0 | 2.18E-3 | 2.07E-3 | 1.96E-3 | 1.86E-3 | 1.78E-3 | 1.70E-3 | ||||
| 14.0 | 1.67E-3 | 1.59E-3 | 1.51E-3 | 1.44E-3 | 1.38E-3 | 1.33E-3 | ||||
| 16.0 | 1.33E-3 | 1.26E-3 | 1.20E-3 | 1.15E-3 | 1.11E-3 | |||||
| 18.0 | 1.09E-3 | 1.02E-3 | 9.82E-4 | 9.43E-4 | 9.09E-4 | |||||
| 20.0 | 9.11E-4 | 8.51E-4 | 8.17E-4 | 7.87E-4 | 7.60E-4 | |||||
| 25.0 | 6.17E-4 | 5.72E-4 | 5.51E-4 | 5.33E-4 | 5.02E-4 | |||||
