SECTION C
      Factors From Finite Areas to Finite Areas

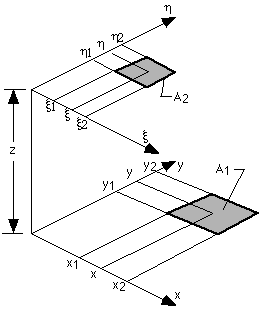

      C-13: Rectangle to rectangle in a parallel plane.

      Warning: The scripts may not work correctly with the Internet Explorer!

      The scripts were written by Yun MO (yun.mo@tel.com).
      The author does not guarentee correctness of the results but welcomes any suggestions.

      x1 = , x2 =
      y1 = , y2 =
      xi1 = , xi2 =
      eta1 = , eta2 =
      z =
      F12 =


        Reference: Ehlert and Smith; see also Gross, Spindler and Hahne; Byrd; Boeke and Wall; Chekhovskii, et al.; Hsu

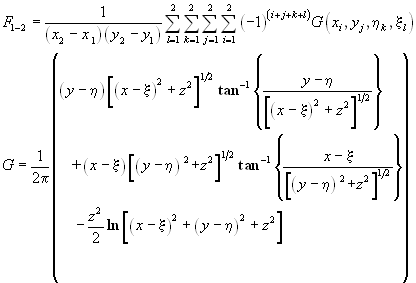

        Governing equation:
        To download a copy of this equation in MS Word 97 Format, click HERE.
