Factors From Finite Areas to Finite Areas

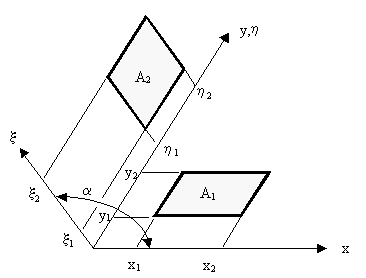

C-17: Rectangle 1 to rectangle 2 in a plane intersecting the plane containing rectangle 1. All rectangle edges are parallel or perpindicular to the line on intersection of the containing planes. Note that the equation fails if the two areas share a common edge.


Reference: Gross, Spindler, and Hahne; Krishnaprakas*; Yuen

*(Uses configuration factor algebra with C-16)

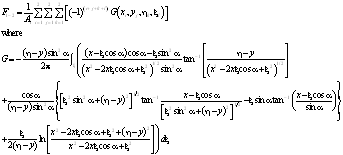

Governing equation:


To download a copy of this equation in MS Word 97 Format, click HERE.
